JQR010310 Series: Twin-Wheel Super-Duty AGV Castors

The JQR010310 Series is a specialized, ultra-robust mobility solution engineered for Super-Duty Autonomous Mobile Robots (AMRs) and industrial transport platforms. Supporting a per-unit load capacity of 2600kg up to 4500kg, this series provides the uncompromising foundation required for massive material handling. By utilizing a reinforced twin-wheel configuration and an elite-tier precision ball-bearing swivel head, the JQR010310 allows multi-ton payloads to be maneuvered with the precision and agility typically only seen in much lighter robot classes.

Key Features & Core Benefits:

  • Super-Duty Load Distribution: The twin-wheel architecture doubles the floor contact area, preventing high-pressure floor damage and ensuring stable transport for 4.5-ton payloads.

  • Precision Ball-Bearing Swivel Head: Engineered with a specialized high-tonnage integrated ball-bearing race. This eliminates the “stick-slip” effect of standard swivel housings, providing smooth, consistent rotation under extreme vertical pressure.

  • Twin-Wheel Differential Effect: The independent rotation of each wheel allows the robot to pivot smoothly without floor “scrubbing,” significantly reducing the torque requirement on heavy-duty steering actuators.

  • Extreme-Performance Treads: Utilizes premium high-load polyurethane (95A-98A) bonded to a reinforced hub, designed to resist flat-spotting and withstand the thermal stresses of 24/7 industrial operations.

  • Streamlined Maintenance Design: This series is built without thread guards to maintain a high-strength, compact profile that allows for rapid inspection of the axle and bearing assemblies in heavy manufacturing environments.

Request 3D CAD Model

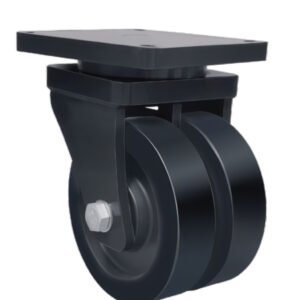

JQR010310 super-duty AGV castor with 4500kg load rating, twin-wheel design, and precision ball-bearing swivel head.

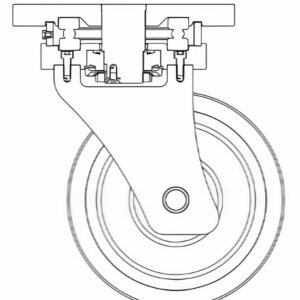

Engineering diagram showing the internal high-tonnage ball-bearing swivel head of the JQR010310 castor.

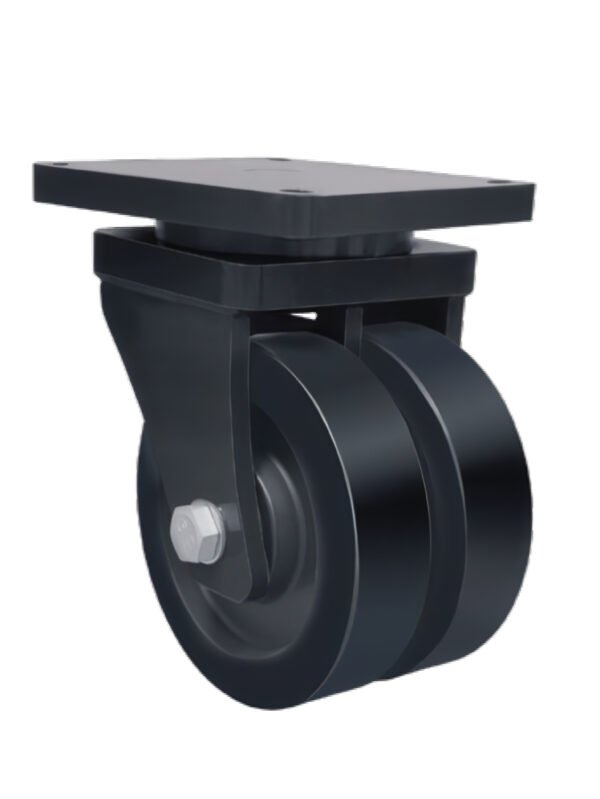

JQR010310 super-duty AGV castor with 4500kg load rating, twin-wheel design, and precision ball-bearing swivel head.
Engineering diagram showing the internal high-tonnage ball-bearing swivel head of the JQR010310 castor.

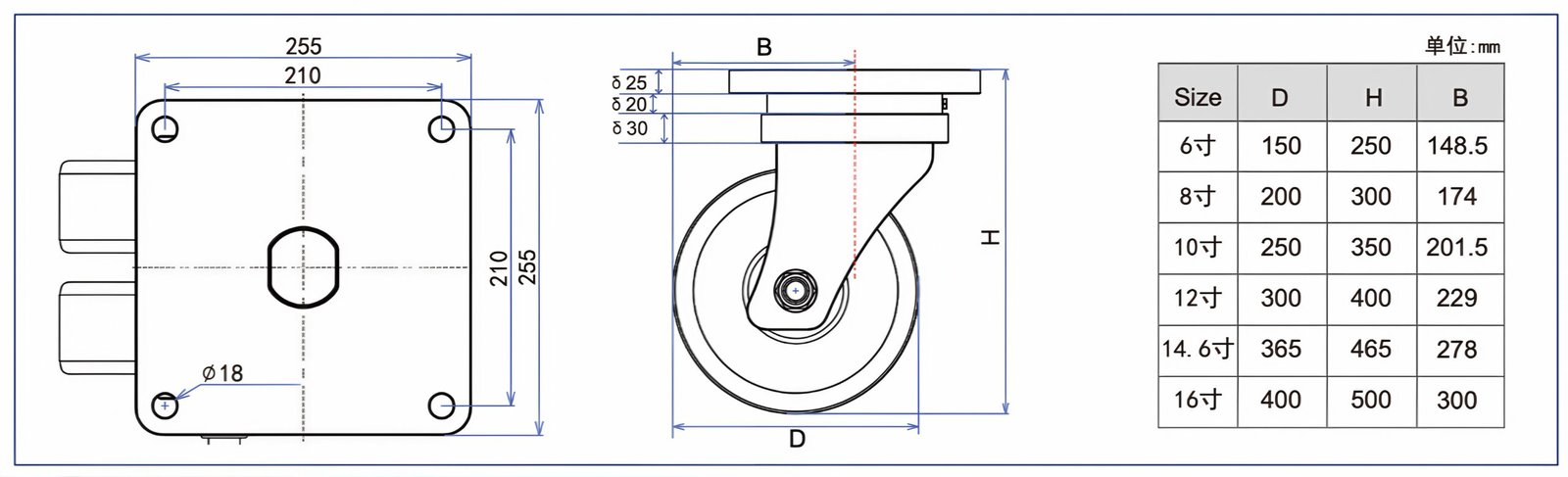

Specification

Item Wheel Diameter (mm) Wheel Width (mm) Wheel hub Load capacity (kg) Bearing type
EQ010310-150CCPU122-95A 150 75mm*2 Steel 2600kg Deep grove ball bearing
EQ010310-200CCPU122-95A 200 75mm*2 Steel 3000kg Deep grove ball bearing
EQ010310-250CCPU122-95A 250 75mm*2 Steel 3500kg Deep grove ball bearing
EQ010310-300CCPU122-95A 300 75mm*2 Steel 3800kg Deep grove ball bearing
EQ010310-365CCPU122-95A 365 75mm*2 Steel 4000kg Deep grove ball bearing
EQ010310-400CCPU122-95A 400 75mm*2 Steel 4500kg Deep grove ball bearing

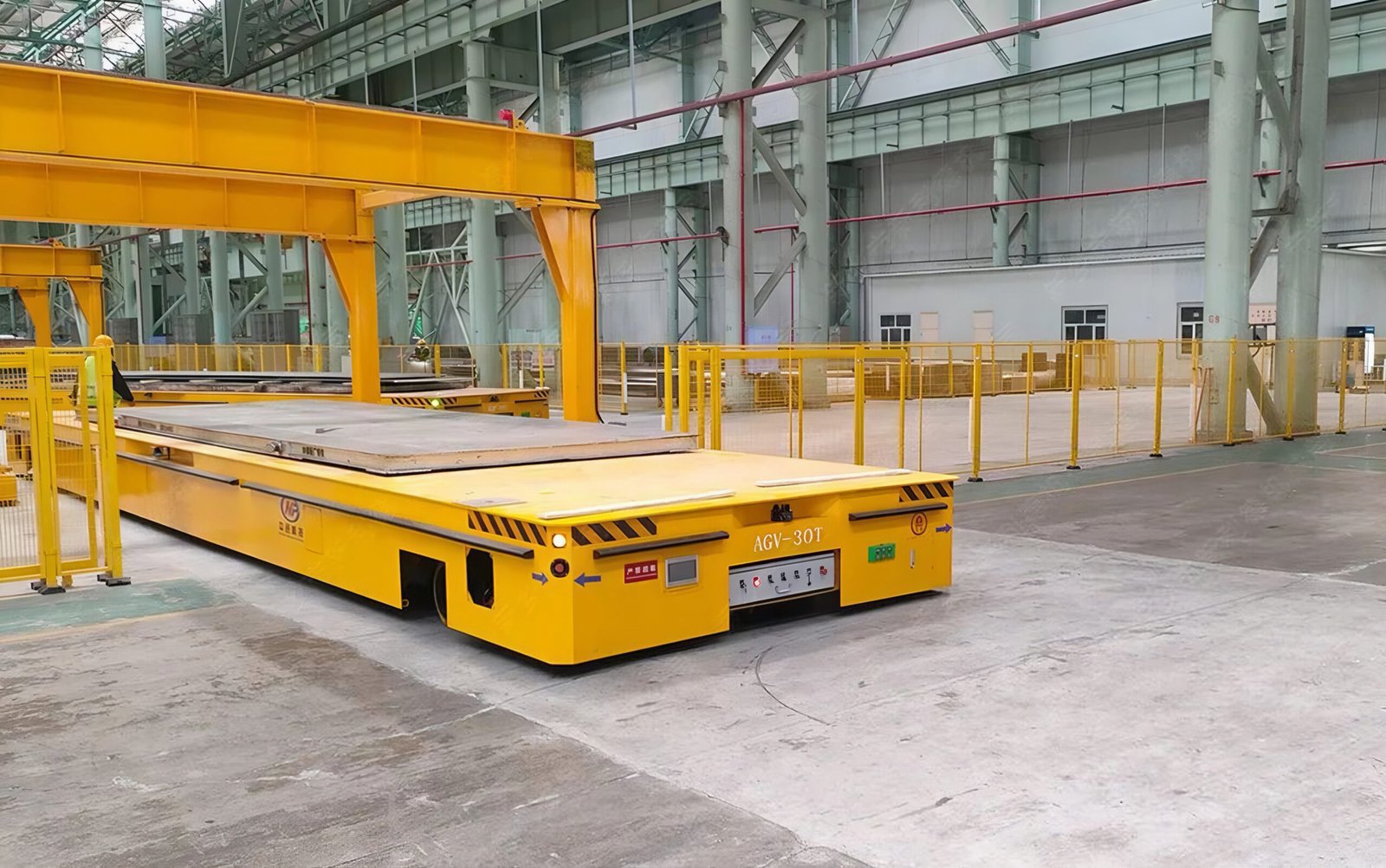

Application
