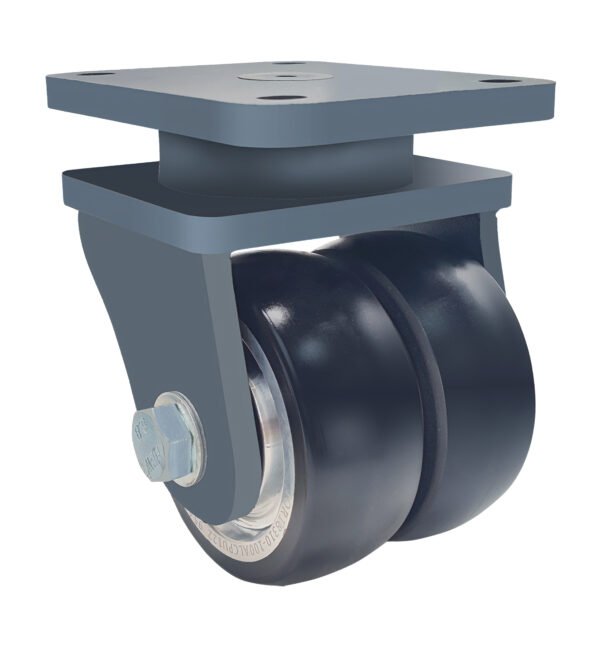

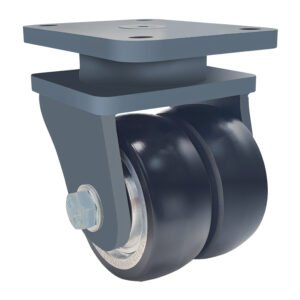

The JQR08310 Series is a high-performance mobility solution designed for medium-heavy Autonomous Mobile Robots (AMRs) and industrial automation platforms. Rated for a per-unit load capacity of 700kg to 900kg, this series strikes the perfect balance between high-tonnage support and agile maneuverability. By utilizing a twin-wheel configuration and a specialized ball-bearing swivel head, the JQR08310 ensures that mid-to-high capacity robots can navigate tight industrial spaces with minimal energy consumption.
Key Features & Core Benefits:
Medium-Heavy Load Distribution: The twin-wheel architecture spreads the 900kg load across a wider surface area, reducing floor pressure and protecting specialized factory surfaces from wear and indentation.

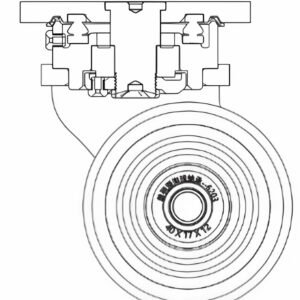

Precision Ball-Bearing Swivel Head: Engineered with an integrated ball-bearing race rather than standard loose-ball assemblies, this swivel head provides ultra-low friction, facilitating effortless 360-degree rotation under load.
Twin-Wheel Differential Effect: Independent rotation of each wheel allows the AMR to pivot smoothly, significantly reducing “scrubbing” and lowering the steering torque required from the drive system.
Streamlined Maintenance Design: This series is designed without a thread guard to maintain a compact structural profile, allowing for easy visual inspection of the wheel and axle in well-maintained industrial environments.
High-Rebound Polyurethane Treads: Features premium-grade treads optimized for high-mileage durability, offering silent operation and low rolling resistance for 24/7 robotic fleets.

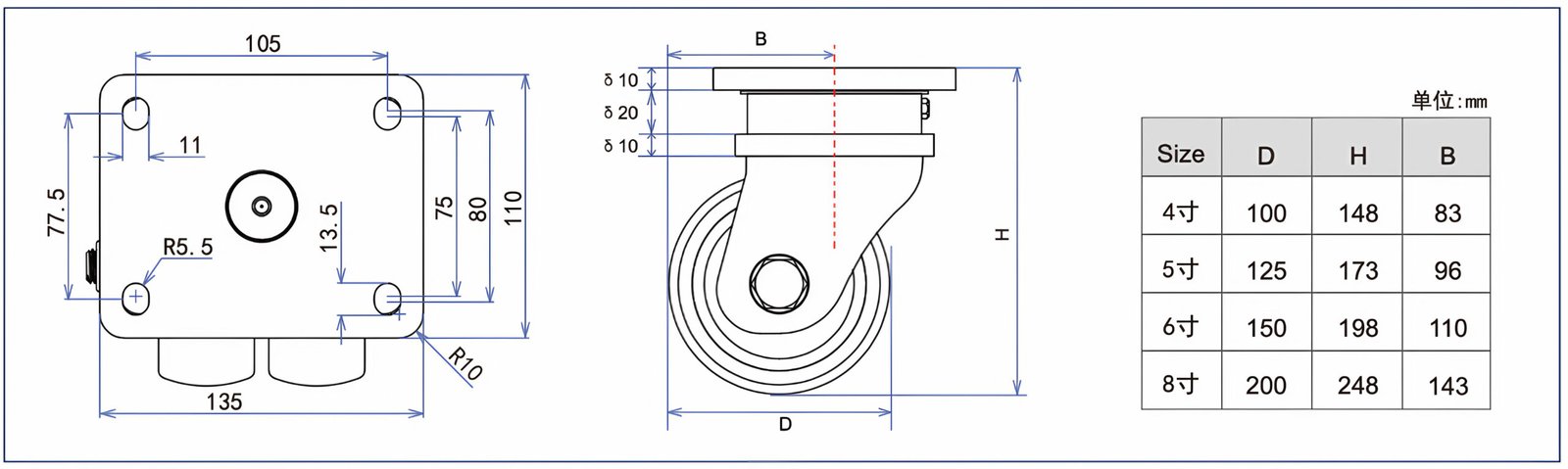

| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type |
| JQR08310-100ALCPU122-95A | 100 | 40mm*2 | Aluminum | 700kg | Deep grove ball bearing |
| JQR08310-125ALCPU122-95A | 125 | 40mm*2 | Aluminum | 750kg | Deep grove ball bearing |
| JQR08310-150ALCPU122-95A | 150 | 40mm*2 | Aluminum | 800kg | Deep grove ball bearing |
| JQR08310-200ALCPU122-95A | 200 | 40mm*2 | Aluminum | 900kg | Deep grove ball bearing |
Founded by an industry professional with deep front-line sales, application insight, and team leadership experience in the European castor industry, Ubetter is a mobility solutions specialist dedicated to mobile robots and autonomous equipment. We bridge application understanding and manufacturing capability to deliver engineered wheel and castor solutions for global customers.
Our strength lies in application-driven engineering, flexible customization, and fast response. By working closely with experienced manufacturing partners, we help customers solve complex mobility challenges efficiently and reliably.
Ubetter collaborates with carefully selected manufacturing partners to ensure technical feasibility, consistent quality, and flexible customization.
One of our strategic partners is ESUN, a specialized manufacturer with strong capabilities in industrial wheels and castors, supporting both standard production and customized designs.
Through these partnerships, we are able to offer:
