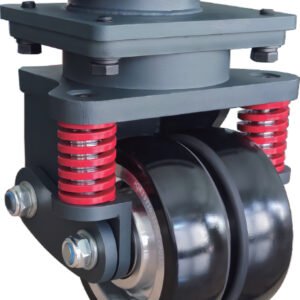

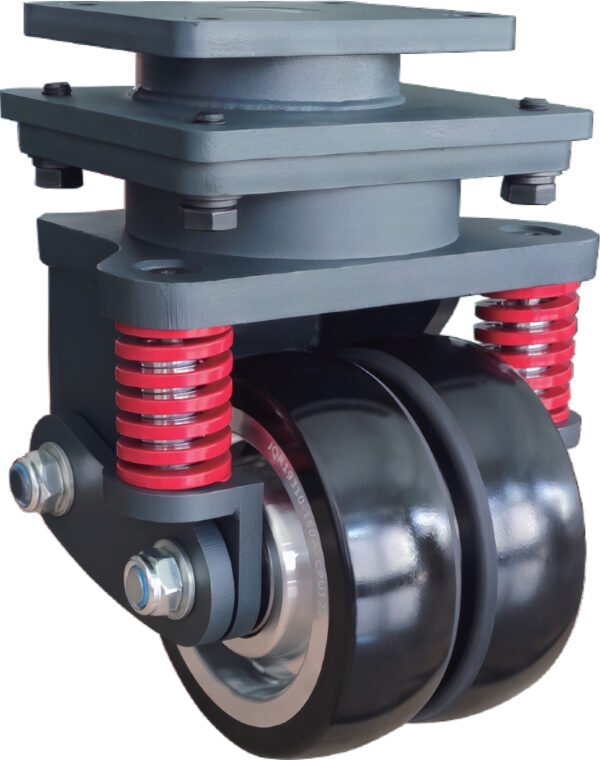

The JQR19310 Double Swivel Castor is a high-tonnage mobility solution engineered for super-heavy duty Autonomous Mobile Robots (AMRs) and AGVs with a per-unit load rating of 1100kg to 1650kg. Unlike integrated designs, the JQR19310 features separated double swivel heads, providing a wider distribution of force and superior stability for large-scale industrial platforms requiring uncompromising precision.
Key Features & Core Benefits:

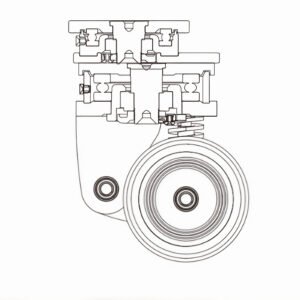

Advanced Separated Double Swivel Design: Features two independent swivel heads to optimize load distribution, reduce point-pressure on the bearings, and provide a more stable footprint for wide-chassis AGVs.
Super-Heavy 1650kg Unit Capacity: Built with ultra-reinforced industrial steel to safely manage heavy-tonnage payloads in automotive, aerospace, and heavy manufacturing sectors.
Professional AMR Customization: As a dedicated technical partner, we specialize in customizing the JQR19310—including mounting plate geometry, height adjustments, and specialized tread compounds—to fit your proprietary robot frame.
Superior Maneuverability & Low Torque: The separated dual-pivot architecture minimizes starting torque even under maximum load, protecting your drive motors and increasing energy efficiency.
Stabilized Navigation Support: Designed to minimize “toggle” and vibration, ensuring that sensitive onboard sensors and high-value payloads remain stable during directional changes.
| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | H (mm) | H1 (mm) | Offset (mm) |
| JQR19310-100ALCPU122-95A | 100 | 50mm*2 | Aluminum | 1100kg | Deep grove ball bearing | 211.1 | 205.1 | 111.5 |
| JQR19310-125ALCPU122-95A | 125 | 50mm*2 | Aluminum | 1300kg | Deep grove ball bearing | 240.1 | 230.1 | 126.5 |
| JQR19310-150ALCPU122-95A | 150 | 50mm*2 | Aluminum | 1500kg | Deep grove ball bearing | 267 | 254 | 143.5 |
| JQR19310-200ALCPU122-95A | 200 | 50mm*2 | Aluminum | 1650kg | Deep grove ball bearing | 320 | 305 | 180 |
