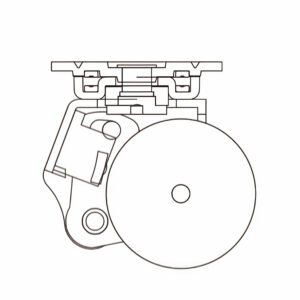

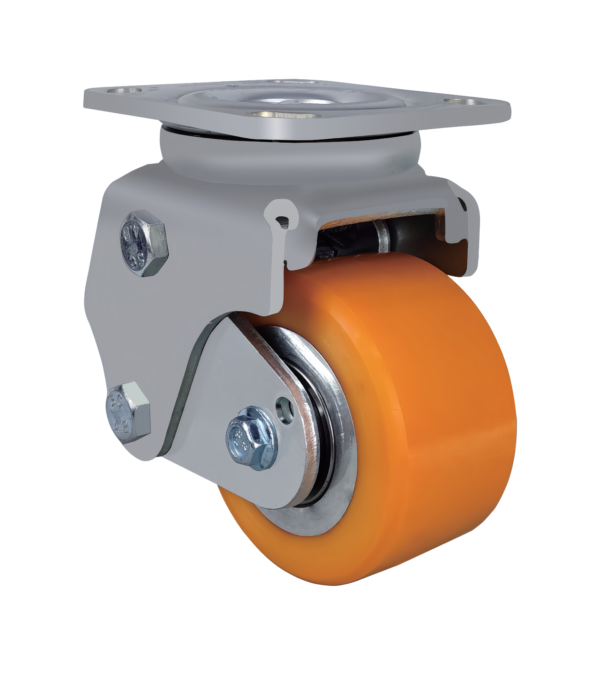

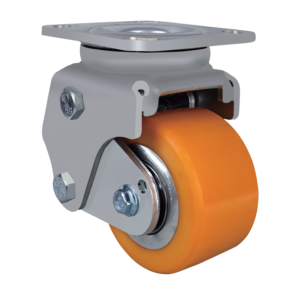

The JQR26310 Shock-Absorbing AGV Castor is a high-performance mobility solution designed for medium-duty Autonomous Mobile Robots (AMRs) and AGVs. Rated for a per-unit load capacity of 300kg to 350kg, this series features a robust spring-dampening architecture that neutralizes surface irregularities, ensuring a stable and protected environment for onboard navigation systems and cargo.
Key Features & Core Benefits:
Industrial Vibration & Impact Protection: Specifically tuned to absorb the energy from floor joints and uneven surfaces, protecting high-resolution LiDAR and sensitive electronics from mechanical shock.
Optimized for 300kg–350kg Payloads: The suspension system is calibrated for mid-range loads, providing the perfect balance between structural support and dampening sensitivity.
Bespoke Technical Customization: As your professional partner, we specialize in modifying the JQR26310 to your specifications—including custom spring rates, mounting heights, and specialized tread materials.
Superior Floor Contact & Traction: The integrated shock-absorption mechanism ensures the wheel remains in constant contact with the ground, preventing drive slippage and maintaining high-precision navigation.
Reduced Noise & Maintenance: By absorbing impact at the point of contact, this series minimizes noise in the warehouse environment and reduces long-term wear on the robot’s main chassis.

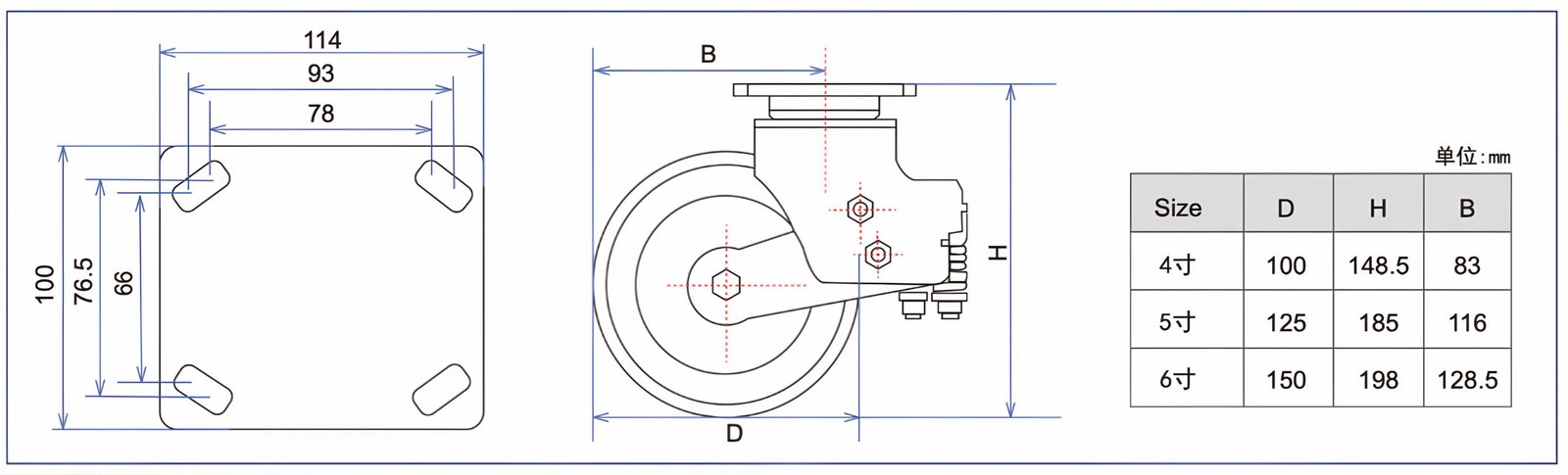

| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | Total height (mm) | Offset (mm) |
| JQR26310-100ALCPU612-95A | 100 | 55mm | Aluminum | 350kg | Deep grove ball bearing | 148.5 | 83 |
| JQR26310-125PACPU612-95A | 125 | 50mm | Nylon | 300kg | Deep grove ball bearing | 185 | 116 |
| JQR26310-150PACPU612-95A | 150 | 50mm | Nylon | 350kg | Deep grove ball bearing | 198 | 128.5 |
Founded by an industry professional with deep front-line sales, application insight, and team leadership experience in the European castor industry, Ubetter is a mobility solutions specialist dedicated to mobile robots and autonomous equipment. We bridge application understanding and manufacturing capability to deliver engineered wheel and castor solutions for global customers.
Our strength lies in application-driven engineering, flexible customization, and fast response. By working closely with experienced manufacturing partners, we help customers solve complex mobility challenges efficiently and reliably.
Ubetter collaborates with carefully selected manufacturing partners to ensure technical feasibility, consistent quality, and flexible customization.
One of our strategic partners is ESUN, a specialized manufacturer with strong capabilities in industrial wheels and castors, supporting both standard production and customized designs.
Through these partnerships, we are able to offer:
