SH06210 Series: Medium-Heavy Double-swivel Castor

The SH06210 Medium Heavy Double Swivel Castor is a precision-engineered mobility solution designed specifically for medium-heavy duty Autonomous Mobile Robots (AMRs) that require stable, low-resistance movement while supporting per-unit loads of 300kg to 500kg.

Key Features & Core Benefits:

  • Integrated Industrial Thread Guards: Features protective shields that prevent floor debris and loose threads from entering the wheel center, eliminating axle tangling in busy factory environments.

  • Patented Double-Swivel Technology: Designed for high-precision AMR docking and tight-space maneuvering, optimized for the higher force requirements of medium-heavy payloads.

  • 50% Swivel Resistance Reduction: Engineered geometry significantly lowers starting torque, allowing drive motors to operate more efficiently even under a full 500kg unit load.

  • Extends Robot Battery Life: By reducing mechanical drag during directional changes, the SH06210 ensures longer uptime per charge cycle for your heavy-duty fleet.

  • Minimized Toggle Effect: Dual-pivot architecture ensures smoother directional transitions, protecting sensitive navigation sensors and cargo stability during turns.

Request 3D CAD Model

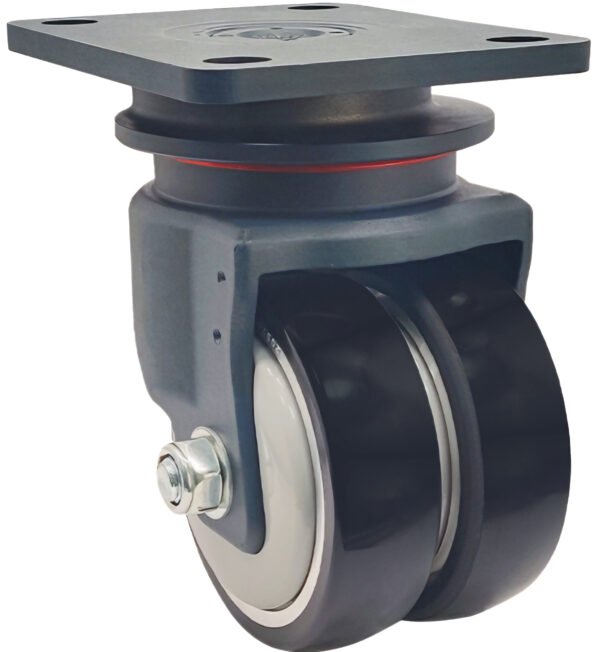

SH06210 medium heavy double-swivel castor with integrated thread guards, rated for 300-500kg per unit.

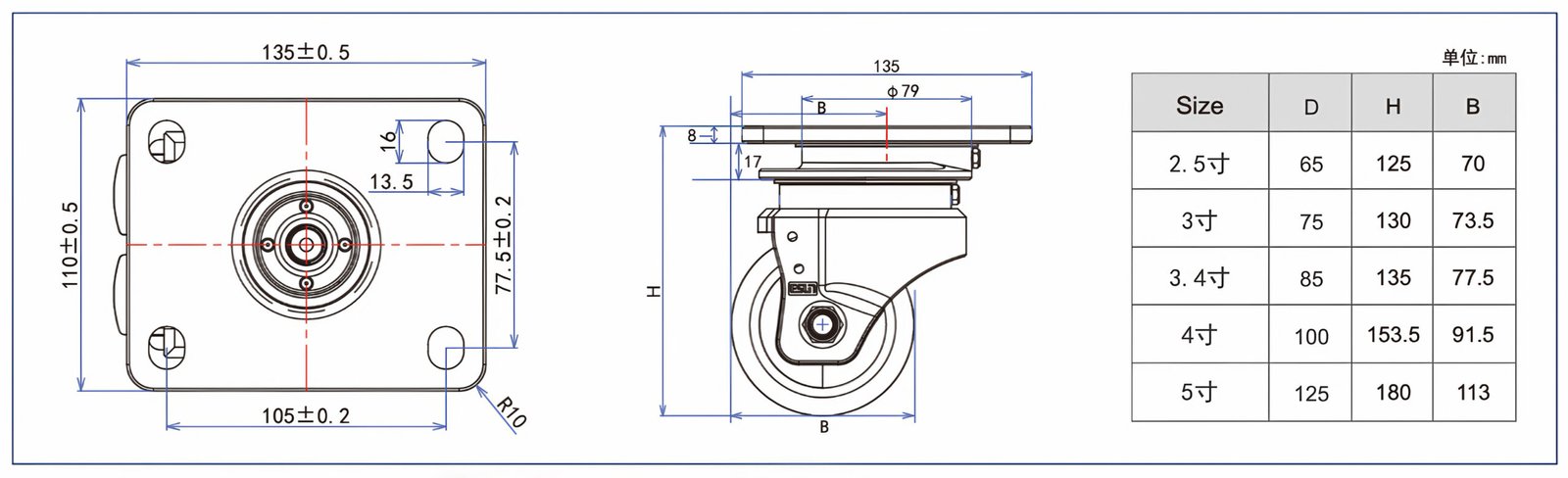

Specification

Item Wheel Diameter (mm) Wheel Width (mm) Wheel hub Load capacity (kg) Bearing type Total height (mm) Offset (mm)
SH06210-65ALCPU122-95A 65 30mm*2 Aluminum 300kg Deep grove ball bearing 125 70
SH06210-75ALCPU122-95A 75 30mm*2 Aluminum 350kg Deep grove ball bearing 130 73.5
SH06210-85ALCPU122-95A 85 30mm*2 Aluminum 350kg Deep grove ball bearing 135 77.5
SH06210-100ALCPU122-95A 100 30mm*2 Aluminum 400kg Deep grove ball bearing 153.5 91.5
SH06210-125ALCPU122-95A 125 30mm*2 Aluminum 500kg Deep grove ball bearing 180 113

Application
