| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | Tread material |
| SY010310-200CCPU122-95A | 200 | 75mm*2 | Steel | 2800kg | Deep grove ball bearing | PU |

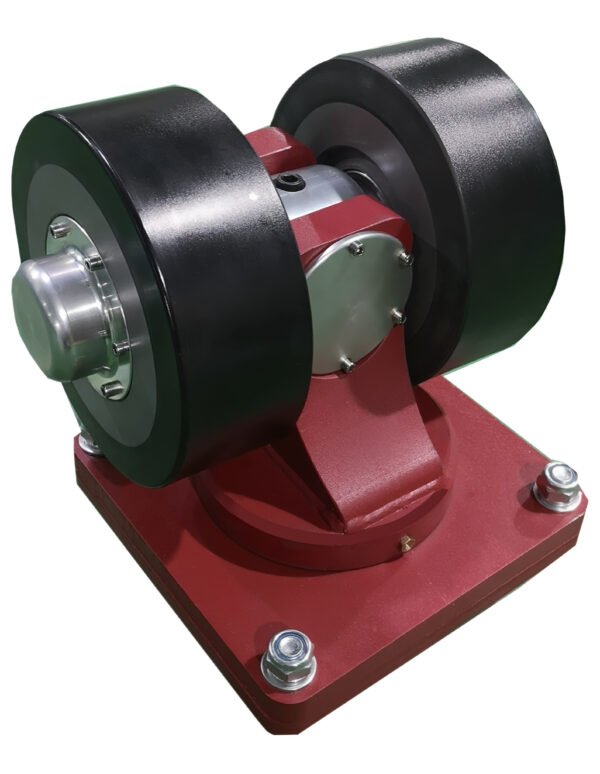

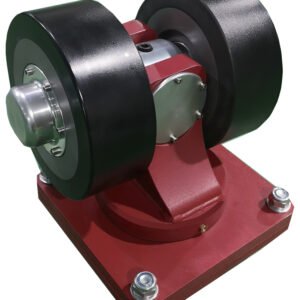

The SY010310 Series represents the peak of industrial suspension engineering for ultra-high capacity autonomous mobile robots. Designed to support 2800kg per castor, this series is the primary choice for heavy manufacturing AGVs and large-scale logistics platforms. Its integrated high-capacity suspension system is critical for heavy tonnage; it prevents “grounding” on uneven surfaces and ensures that the drive wheels maintain constant traction even when the robot is carrying near its maximum 2.8-ton limit.
Key Features & Core Benefits:
High Load Suspension: Specifically calibrated for 2800kg, the spring-loaded system prevents rigid-frame stress and chassis warping during heavy-load transitions.
Superior Floor Contact: Maintains 100% wheel-to-floor contact over ramps and expansion joints, essential for the safe and precise braking of heavy loads.
Heavy-Duty Forged Swivel Head: The swivel mechanism is built with a reinforced, precision-ground race to handle the massive lateral forces associated with high-tonnage maneuvering.
Impact & Vibration Isolation: Protects expensive LiDAR, drive controllers, and the robot’s structural integrity from the harsh vertical impacts of industrial flooring.
| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | Tread material |
| SY010310-200CCPU122-95A | 200 | 75mm*2 | Steel | 2800kg | Deep grove ball bearing | PU |
Founded by an industry professional with deep front-line sales, application insight, and team leadership experience in the European castor industry, Ubetter is a mobility solutions specialist dedicated to mobile robots and autonomous equipment. We bridge application understanding and manufacturing capability to deliver engineered wheel and castor solutions for global customers.
Our strength lies in application-driven engineering, flexible customization, and fast response. By working closely with experienced manufacturing partners, we help customers solve complex mobility challenges efficiently and reliably.
Ubetter collaborates with carefully selected manufacturing partners to ensure technical feasibility, consistent quality, and flexible customization.
One of our strategic partners is ESUN, a specialized manufacturer with strong capabilities in industrial wheels and castors, supporting both standard production and customized designs.
Through these partnerships, we are able to offer:
