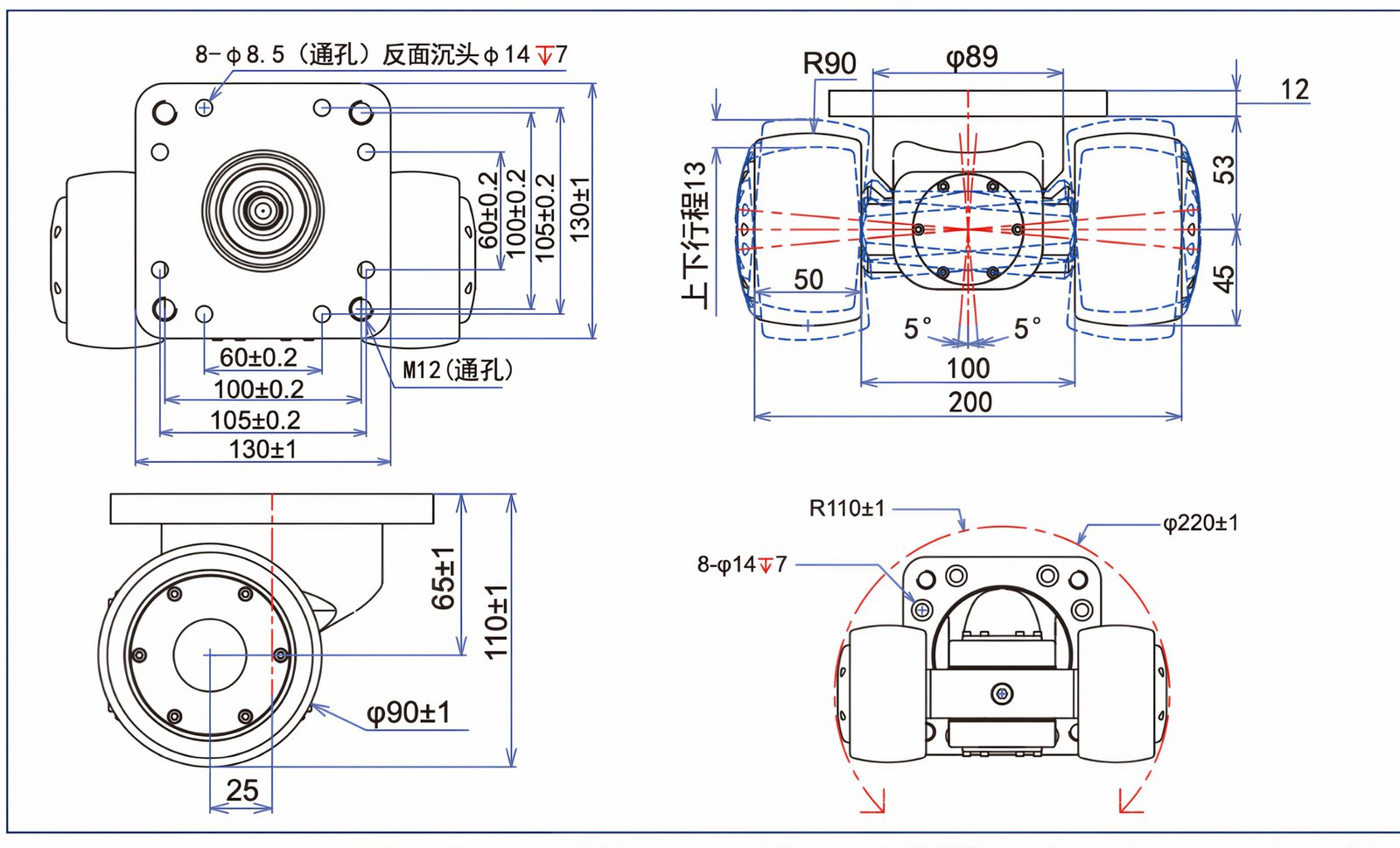

| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | Tread material |
| SY09310-90CCPU122-95A | 90 | 50mm*2 | Steel | 1000kg | Deep grove ball bearing | PU |

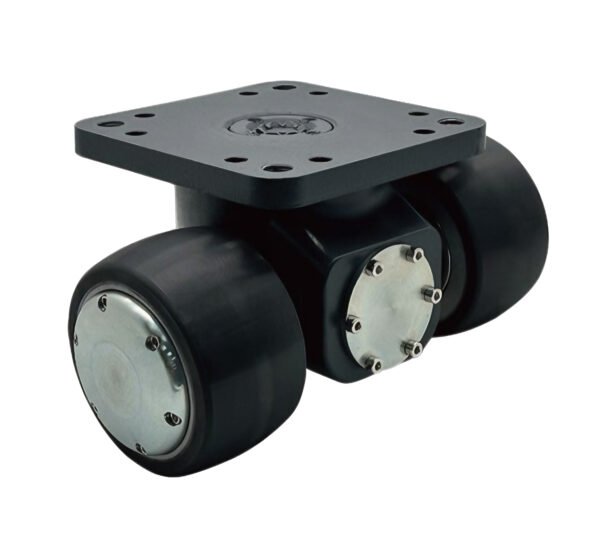

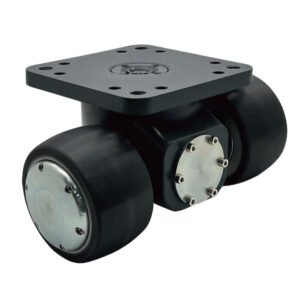

The SY09310 Series is the industrial standard for heavy-duty autonomous mobile robots requiring a 1-ton load capacity per unit. Designed for high-tonnage transport in manufacturing and warehouse environments, this series utilizes an advanced heavy-duty suspension system. It is specifically engineered to protect the robot’s drive system and sensitive internal electronics by absorbing the significant kinetic energy generated when 1000kg loads encounter floor irregularities, ramps, or debris.
Key Features & Core Benefits:

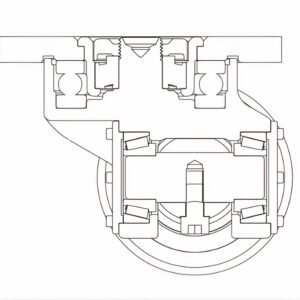

1-Ton High-Tension Suspension: Features a reinforced heavy-duty spring assembly designed to maintain constant floor pressure under significant payloads.
Heavy-Impact Vibration Dampening: Effectively isolates the robot chassis from vertical shocks, significantly extending the lifespan of sensors and drive motors.
Superior Traction Control: Guarantees constant drive-wheel contact, essential for maintaining path accuracy and safety on slopes or uneven factory floors.
Reinforced Steel Construction: The housing is manufactured from high-tensile forged steel to ensure “Reliable Precision” even under the most demanding industrial duty cycles.
| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type | Tread material |
| SY09310-90CCPU122-95A | 90 | 50mm*2 | Steel | 1000kg | Deep grove ball bearing | PU |
