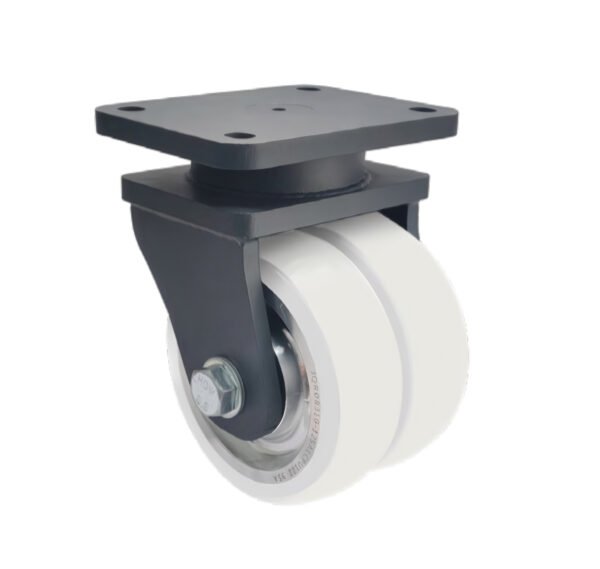

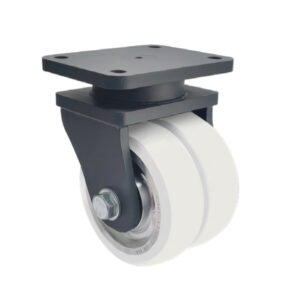

The WH08310 Heavy-Duty Cleanroom Castor is an elite mobility solution engineered for high-tonnage Autonomous Mobile Robots (AMRs) and industrial equipment in ISO-certified environments. Rated for a per-unit load capacity of 700kg to 900kg, this series provides uncompromising structural rigidity and high-purity performance, making it the definitive choice for heavy pharmaceutical mixing tanks and semiconductor fabrication machinery.
Key Features & Core Benefits:
Heavy-Duty Particle Control: Features reinforced high-rebound polyurethane treads designed to support up to 900kg without shedding particulates, protecting the air quality of sensitive cleanroom zones.
ESD-Safe & Anti-Static Protection: Fully customizable electrical conductivity options (Conductive vs. Dissipative) to safely neutralize static charges during the transport of sensitive electronic payloads.

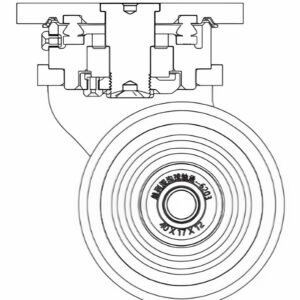

Reinforced 304/316 Stainless Steel: Built with a thickened stainless steel housing and pivot assembly to withstand both extreme vertical pressure and aggressive chemical sterilization protocols.
Maintenance-Free Precision: Equipped with oversized, shielded precision ball bearings and non-outgassing, medical-grade lubricants for long-term reliability in high-purity air or vacuum environments.
Maximum Load Stability: The rigid, non-shock-absorbing architecture ensures a constant ride height, providing the stable foundation required for high-tonnage robotic docking and material transfer.

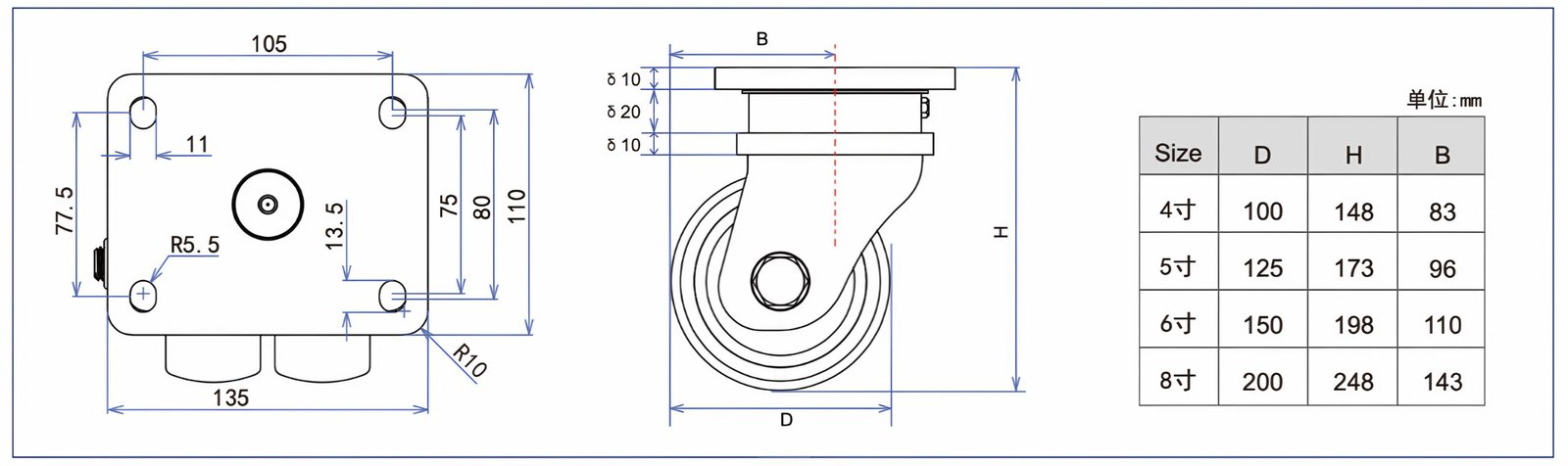

| Item | Wheel Diameter (mm) | Wheel Width (mm) | Wheel hub | Load capacity (kg) | Bearing type |
| WH08310-100ALCPU322-95A | 100 | 40mm*2 | Aluminum | 700kg | Deep grove ball bearing |
| WH08310-125ALCPU322-95A | 125 | 40mm*2 | Aluminum | 750kg | Deep grove ball bearing |
| WH08310-150ALCPU322-95A | 150 | 40mm*2 | Aluminum | 800kg | Deep grove ball bearing |
| WH08310-200ALCPU322-95A | 200 | 40mm*2 | Aluminum | 900kg | Deep grove ball bearing |
