JQR19310 Series: Heavy-Duty Shock-Absorbing AGV Castors

The JQR19310 Heavy-Duty AGV Castor is a specialized, high-capacity mobility solution engineered for heavy-tonnage Autonomous Mobile Robots (AMRs) and AGVs. With a per-unit load rating of 1200kg to 2000kg, this series features a reinforced industrial suspension system designed to absorb massive impact forces, ensuring the structural integrity of high-value heavy-duty automated vehicles.

Key Features & Core Benefits:

  • Industrial-Grade Vibration Protection: Specifically designed to neutralize the high-impact shocks generated by multi-ton loads traversing expansion joints and uneven industrial floors.

  • Heavy-Duty Suspension for 1200kg–2000kg: Features high-tensile alloy springs and a reinforced pivot architecture to maintain dampening performance without “bottoming out” under maximum industrial pressure.

  • Professional Technical Partnership: As a specialist in heavy-duty robotics, we offer bespoke engineering for the JQR19310, including custom mounting plate thickness, spring-rate optimization, and specialized tread formulations.

  • Enhanced Traction & Load Stability: The shock-absorbing mechanism ensures the wheel maintains a constant footprint on the floor, preventing drive-wheel slippage and ensuring precise braking for heavy payloads.

  • Chassis Longevity: By absorbing kinetic energy at the point of contact, the JQR19310 prevents micro-cracks and weld fatigue in your proprietary heavy-duty AMR chassis.

Request 3D CAD Model

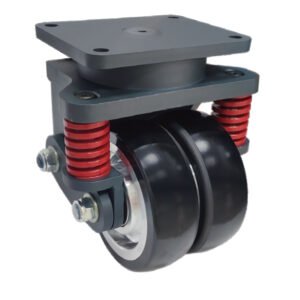

JQR19310 heavy-duty shock-absorbing AGV castor with 2000kg load capacity and reinforced spring system.

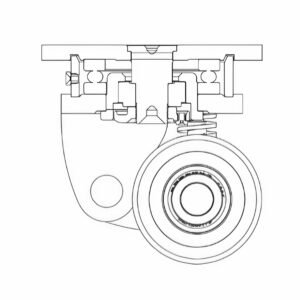

Internal engineering diagram of the JQR19310 heavy-duty AGV castor showing reinforced suspension and high-load pivot bearings.

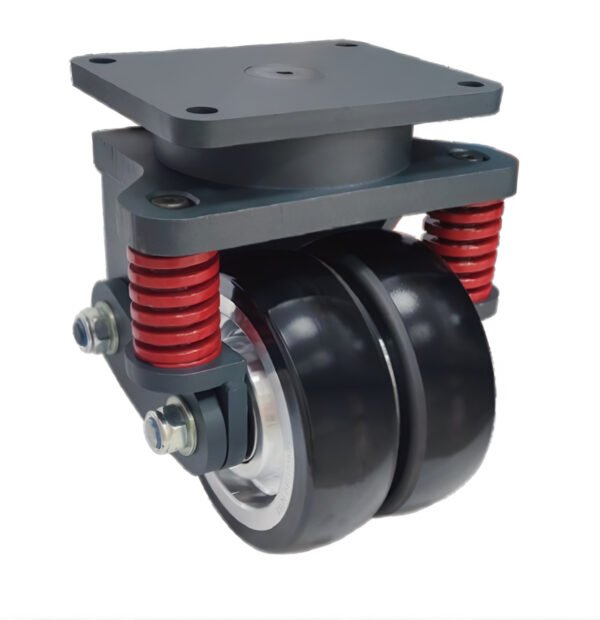

JQR19310 heavy-duty shock-absorbing AGV castor with 2000kg load capacity and reinforced spring system.
Internal engineering diagram of the JQR19310 heavy-duty AGV castor showing reinforced suspension and high-load pivot bearings.

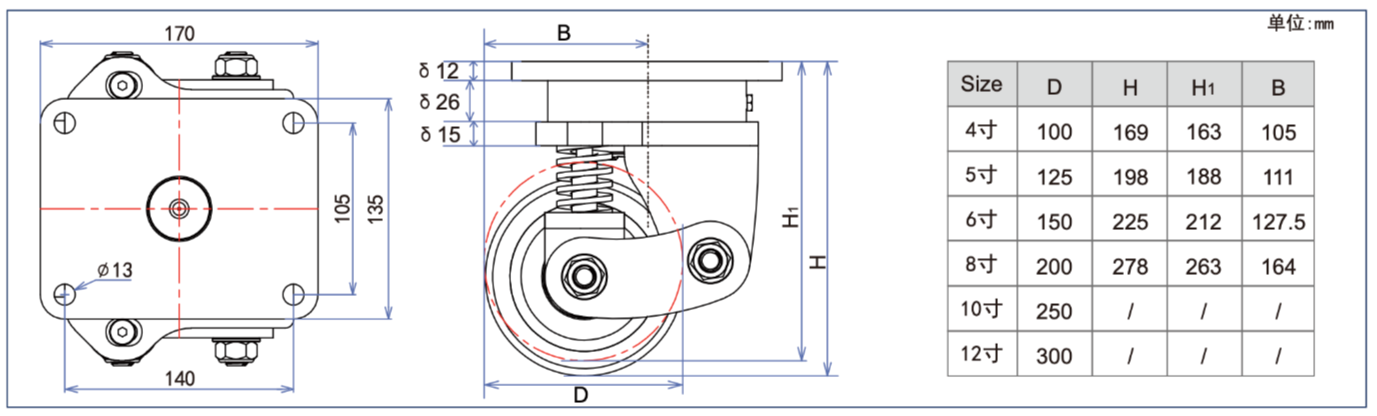

Specification

Item Wheel Diameter (mm) Wheel Width (mm) Wheel hub Load capacity (kg) Bearing type H (mm) H1 (mm) Offset (mm)
JQR19310-100ALCPU122-95A 100 50mm*2 Aluminum 1200kg Deep grove ball bearing 169 163 105
JQR19310-125ALCPU122-95A 125 50mm*2 Steel 1300kg Deep grove ball bearing 198 188 111
JQR19310-150ALCPU122-95A 150 50mm*2 Steel 1500kg Deep grove ball bearing 225 212 127.5
JQR19310-200ALCPU122-95A 200 50mm*2 Steel 1650kg Deep grove ball bearing 278 263 164
JQR19310-250ALCPU122-95A 250 50mm*2 Steel 1800kg Deep grove ball bearing / / /
JQR19310-300ALCPU122-95A 300 50mm*2 Steel 2000kg Deep grove ball bearing / / /

Application
